Pathtrack tags have successfully been used to track Razorbills, providing both GPS and depth data via wireless download. The examples below demonstrate how our new picoFix® GPS technology now allows us to achieve either significant increases in GPS capacity or significant weight reduction when compared to the previous nanoFix® configurations used on this species

Tag Specifications

Example Configurations

UHF Download

Depth

8.2g GPS + UHF download

8.9g GPS + UHF download

10.2g GPS + depth + UHF download

13.5g GPS + depth + UHF download

Alternate

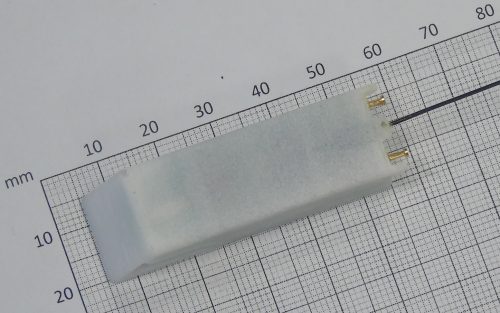

Weight	8.2g
Dimensions	50x16x10mm plus ~50mm external whip antenna
Battery-only Capacity	~1400 GPS location attempts including regular UHF download attempts
Onboard storage	320000 GPS location attempts
Immersion Sensor	Onboard sensor used to avoid wasted power when bird is submerged
UHF Download Range	Up to 2km in ideal conditions, 100-200m in typical conditions
Programming Interface	Wireless configuration via base station
Waterproofing	Depth proof to 100m
Packaging	Duraform housing and epox
Attachment Method	Tape or glue

Deployments

Search by species

Pathtrack tags have been deployed on a wide variety of species around the world. Browse our different categories to see if you can find the species that you are looking to study.

View A-Z List

Deployments

Razorbill

Tag Specifications

Example Configurations

Deployments

Search by species

Bats

Passerines

Penguins

Raptors

Seabirds

Swifts and Swallows

Water Fowl and Waders

Others

A-Z List


Weight	8.9g
Dimensions	50x16x10mm plus ~50mm external whip antenna
Battery-only Capacity	~5000 GPS location attempts including regular UHF download attempts
Onboard storage	320000 GPS location attempts
Immersion Sensor	Onboard sensor used to avoid wasted power when bird is submerged
UHF Download Range	Up to 2km in ideal conditions, 100-200m in typical conditions
Programming Interface	Wireless configuration via base station
Waterproofing	Depth proof to 100m
Packaging	Duraform housing and epoxy
Attachment Method	Tape and glue


Weight	10.2g
Dimensions	54x16x11mm plus ~50mm external whip antenna Length includes 4mm depth sensor
Battery-only Capacity	~5000 GPS location attempts including regular UHF download attempts, but with no depth data. See Table D for illustrations of the impact depth data transmission would have on the battery capacity of this tag
Onboard storage	40000 GPS location attempts Remaining memory reserved for depth data
Immersion Sensor	Onboard sensor used to avoid wasted power when bird is submerged
UHF Download Range	Up to 2km in ideal conditions, 100-200m in typical conditions
Depth Sensor	Depth and temperature sensor rated to 290m Configurable sample rate and depth threshold
Programming Interface	Wireless configuration via base station
Waterproofing	Depth proof to 100m
Packaging	Duraform housing and epoxy
Attachment Method	Tape or glue


Weight	13.5g
Dimensions	56x25x10mm plus ~50mm external whip antenna Length includes 4mm depth sensor
Battery-only Capacity	~10000 GPS location attempts including regular UHF download attempts, but with no depth data. See Table E for illustrations of the impact depth data transmission would have on the battery capacity of this tag
Onboard storage	40000 GPS location attempts Remaining memory reserved for depth data
Immersion Sensor	Onboard sensor used to avoid wasted power when bird is submerged
UHF Download Range	Up to 2km in ideal conditions, 100-200m in typical conditions
Depth Sensor	Depth and temperature sensor rated to 290m Configurable sample rate and depth threshold
Programming Interface	Wireless configuration via base station
Waterproofing	Depth proof to 100m
Packaging	Duraform housing and epoxy
Attachment Method	Tape or glue
