Tag Specifications

Example Configurations

0.95g Mini GPS logger + accel + solar
1.05g Mini GPS logger + accel + solar
Alternate
Weight 0.95g

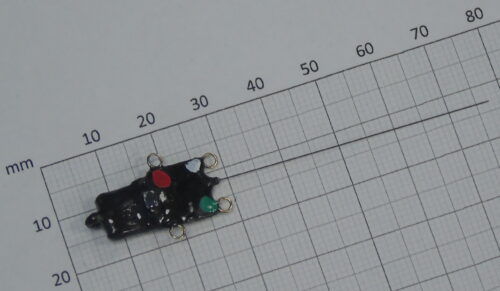

Dimensions 20x11x3mm plus ~50mm external whip antenna
Battery-only Capacity ~320 GPS location attempts
Accelerometer data may reduce this slightly - contact us for further details
Solar Capacity ~20 GPS location attempts per day in UK summertime conditions
Onboard storage 320000 GPS location attempts with accelerometer disabled
10000 GPS location attempts with up to 90 days of continuous accelerometer data for example
Accelerometer Burst or continuous data capture at 1Hz, 12.5Hz, 25Hz or 50Hz
Programming Interface PC programmer via USB
Waterproofing Immersion proof
Packaging Epoxy
Attachment Method Glue or harness

Deployments

Search by species

Pathtrack tags have been deployed on a wide variety of species around the world. Browse our different categories to see if you can find the species that you are looking to study.
