Technical Specification

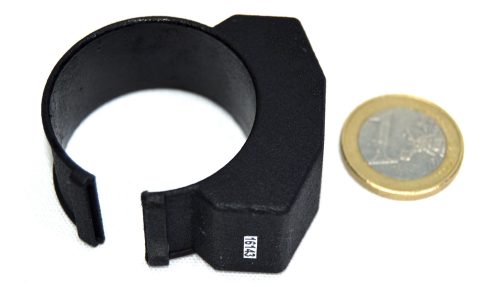

nanoFix® GEO+RF (Neck Collar)
| Weight | 14.5g to 15.0g depending on diameter |
| Dimensions | ~35-38mm diameter collar, plus ~42 x 22 x 13mm for electronics |
| Battery only capacity | 1000 GPS location attempts including UHF attempts |
| Solar capacity | ~12 per day in UK summer conditions |
| Onboard storage capacity | ~60000 GPS location attempts |
| Programming interface | Wireless configuration via base station |
| UHF download range | Up to 2km in ideal conditions, 100-200m in typical conditions |
| Waterproofing | Immersion proof |
| Packaging type | Duraform housing and epoxy |
| Attachment method | Neck collar |
Technical Specification

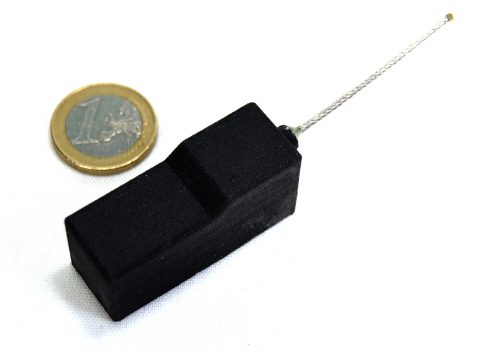

nanoFix® GEO+RF (Backpack)
| Weight | 21g |
| Dimensions | 61x22x19mm plus external whip antenna |
| Battery only capacity | 2500 GPS location attempts including UHF attempts |
| Solar capacity | Not applicable |
| Onboard storage capacity | ~60000 GPS location attempts |
| Programming interface | Wireless configuration via base station |
| UHF download range | Up to 2km in ideal conditions, 100-200m in typical conditions |
| Waterproofing | Immersion proof |
| Packaging type | Duraform houisng and epoxy |
| Attachment method | Glue or tape |
Deployments
Search by species
Pathtrack tags have been deployed on a wide variety of species around the world. Browse our different categories to see if you can find the species that you are looking to study.
